| Encoder model： | EC21-PIP series |
| Name： |
EC21 PIP Hollow Shaft Incremental Encoder |
| Main Specifications: |
Rated power: DC 5V; |
| Product Features： |
High temperature resistance, can meet the PIP process; |
| Applications： |
Car audio, car air conditioning and other household appliances, related electronic equipment; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 110-210gf.cm
2. Number of detent: 30 (Step angle: 12±3°)
3. Shaft Wobble: 0.2 mm Max
4. Shaft play: 3°Max
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 15 pulses/360°
2. Phase difference: ≥5ms
3. Power rating: DC 5V
4. Insulation resistance: 100M? 60s±5s at DC 250V
5. Dielectric voltage: AC 300V 60s±5s
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min

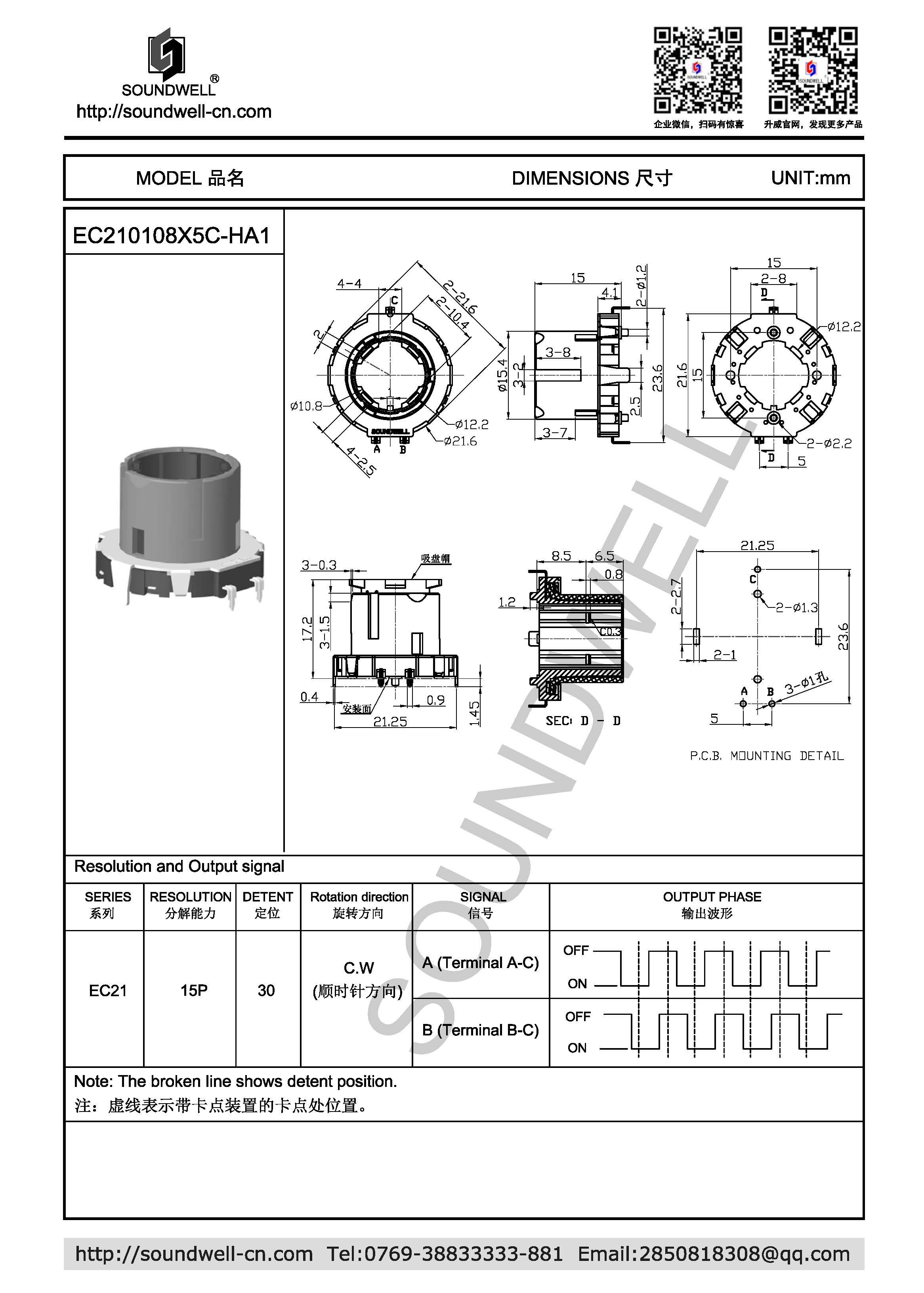

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
/uploads/images/EC21(PIP)(1).jpg
