RJ1803 FPC Joystick Potentiometer

RJ1803 FPC Joystick Potentiometer

  • Series:RJ18+FPC
  • Format:See the following profile
  • Specifications

    Encoder model: RJ1803(FPC)
    name:

    RJ18 FPC Joystick Potentiometer

    Main specifications:

    Rated power: 0.0125W
    Rated voltage: DC 5V
    Voltage divider error: 44%-56%
    Operating travel: 4mm
    Operating torque: 110±50 gf.
    Operating temperature: -10 ℃~55 ℃
    Rotational life: 100,000 cycles Min

    Features:

    FPC output for easy assembly;

    Low profile with a total height of only 6.2mm (including lever) ;

    Lever can be customized;

    360°movement on 2D flat surface with returning to offset positions;

    Application areas:

    Handhold gimbals, gaming controllers and other related electronic

    devices. It is mainly used for direction control and mode switching.

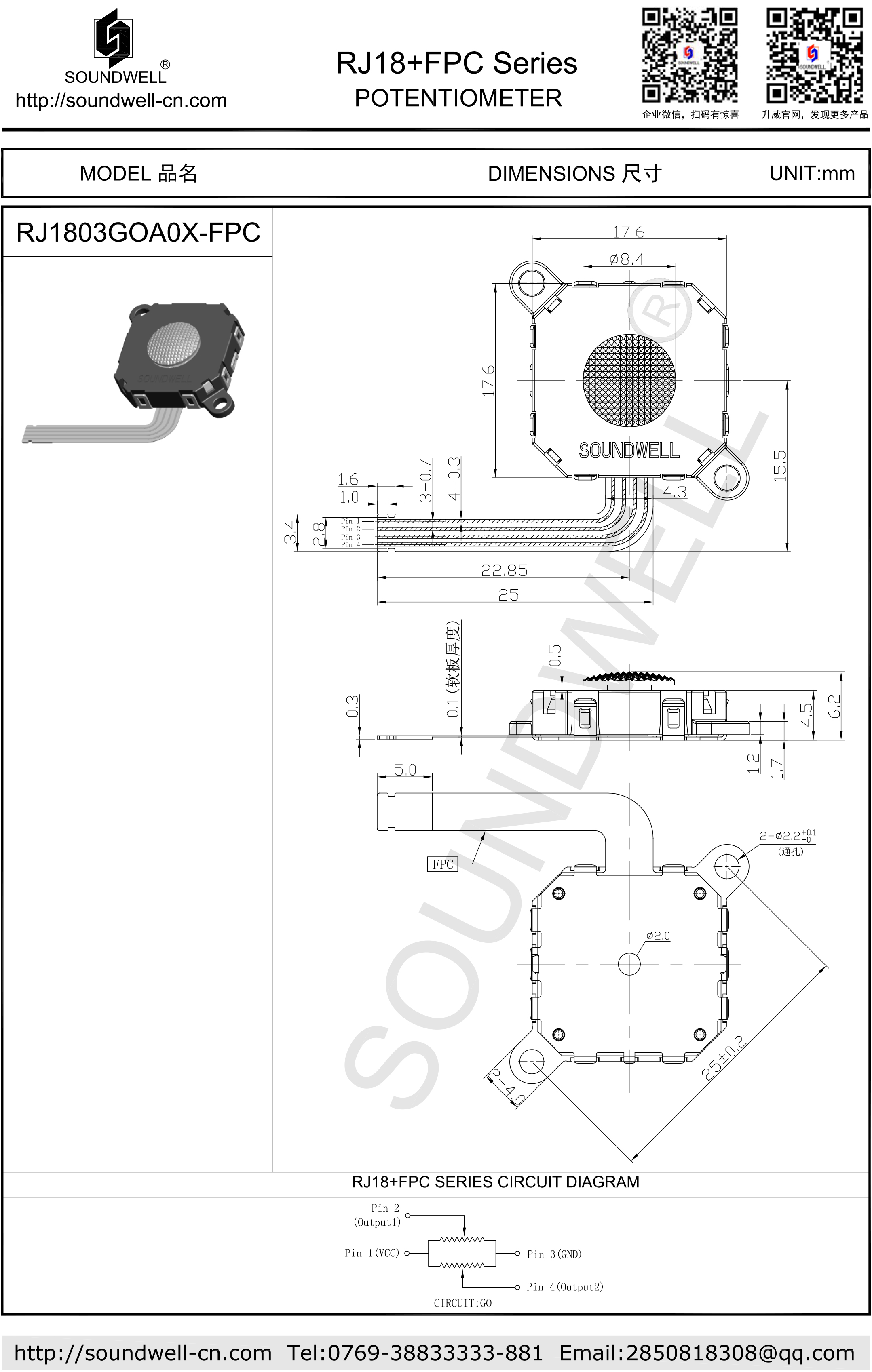

    RJ18+FPC Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
           1. Operating Travel: 4mm
           2. Operating Torque: 110±50 gf
    TWO、ELECTRICAL CHARACTERISTIC
           1. Total resistance: 10K±20%
           2. Rated power: 0.0125W
           3. Rated voltage: DC 5V;
           4. Voltage divider error: 44%-56%

    THREE、ENDURANCE CHARACTERISTIC
          1. Rotational life: 100,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval
            sheet", it's subject to the "Approval sheet".

    下載RJ18+FPC .pdf

    RJ18+FPC軟板搖桿電位器
