RS1200O peration lever and press operation type switch

Series：RS1200

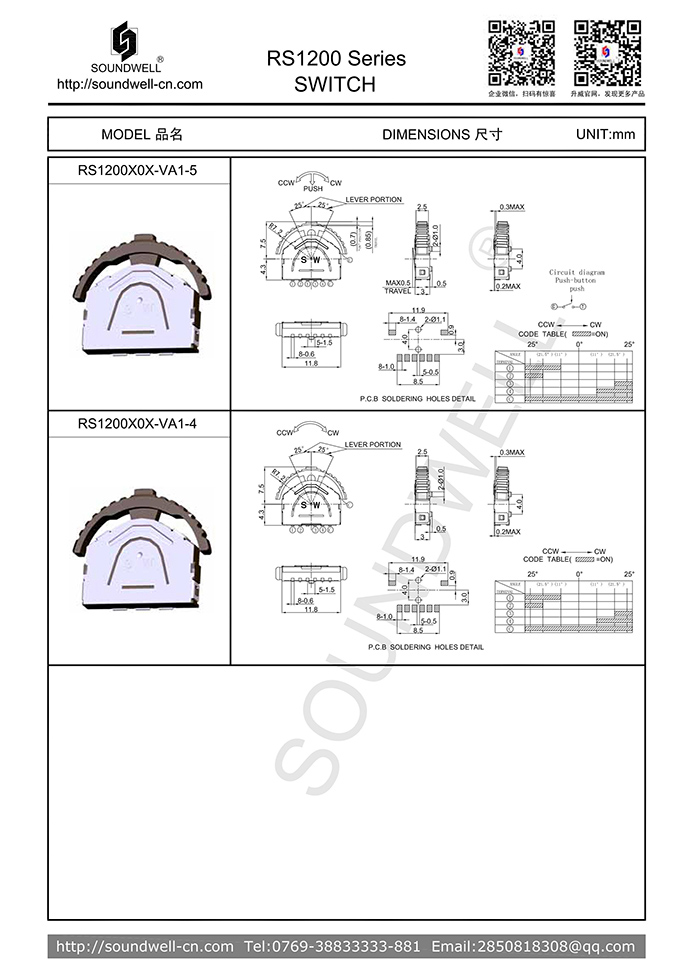

Format：See the following profile

Specifications　　

Encoder model：	RS1200
Name：	Operation rod and press operation type switch
Main Specifications:	Dimensions：12mm Rated voltage: DC 5V； Operating temperature：－10℃ ～+60℃； Life：100,000 More than times；
Product Features：	Can swing around and up and down the pressing operation, surface mount.
Applications：	Products are mainly applied to the photographic equipment, headphones, electronic toys, furniture and other intelligent electronic devices, the main function for switching menu, select functions, adjust volume and so on.

RS1200ProductSpecifications

ONE、MECHANICAL CHARACTERISTIC
1、 Operation Force ：Push:200±100gf 2-direction:100±50gf
2、Wobble of actuator (mm p-p) ：2mm p-p .

TWO、ELECTRICAL CHARACTERISTIC
1、Rating Power : 10mA, DC 5V
2、Insulation Resistance ：100 MΩ 1 Min at DC 100V
3、Dielectric Voltage ：1 Minute at AC100V

THREE、ENDURANCE CHARACTERISTIC
1、Operation Life 100,000 cycles Min

Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".

DownloadRS1200.pdf
