| Potentiometer model： | SM10001 series |
| Name： |

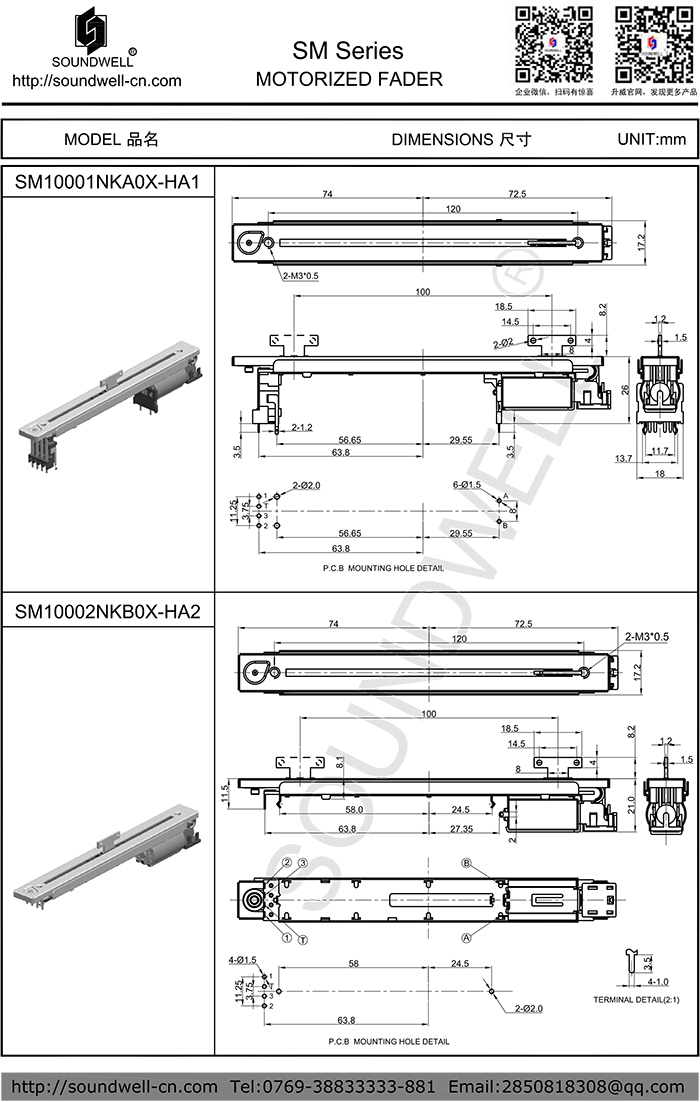

SM10001 Motorized Slide Potentiometer |
| Main Specifications: |
Maximum operating voltage: 200V AC; Motor working voltage: 6V~10V DC; Operating torque: 20~60gf.cm Operating temperature: -10℃~60℃; Sliding travel: 100mm±0.5mm; Operating life: 30,000 Min |
| Product Features： |
Motor- driven slide potentiometer with reliable performance and high endurance; Touch sense function incorporated; Available in many different variants. |
| Applications： |
Digital mixing consoles, pianos, 3D display devices, stage sound, health care, appliances and other related electronic devices. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 20~60gf.cm
2. Sliding Travel: 100mm±0.5mm
3. Lever Stop Strength: ≥5Kgf.cm
4. Lever Wobble (mm p-p): 1.6mm Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 10KΩ±20%
2. Resistance Taper: 0B
3. Rated Power: 0.5W
4. Maximum Operating Voltage: AC 200V
5. Insulation Resistance: 100MΩ 1 Minute at DC 250V
6. Dielectric Voltage: 1 Minute at AC 250V
7. Motor Working Voltage: 6V~10V DC
8. Touch Sense Track: With
THREE、ENDURANCE CHARACTERISTIC
1. Operating life: 30,000 Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet"
